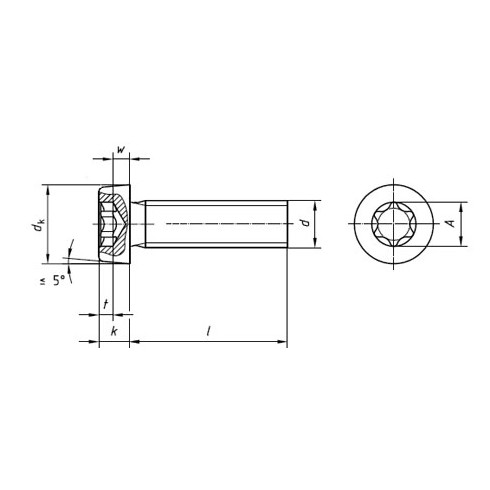

| d thread size | P | dk nom= max | k nom= max | w min | Socket Nr | A | t min | t max |
|---|---|---|---|---|---|---|---|---|
| M2 | 0.4 | 3.8 | 1.55 | 0.5 | 6 | 1.75 | 0.71 | 0.84 |
| M2.5 | 0.45 | 4.5 | 1.85 | 0.7 | 8 | 2.4 | 0.78 | 0.91 |
| M3 | 0.5 | 5.5 | 2.4 | 0.75 | 10 | 2.8 | 1.01 | 1.27 |
| M3.5 | 0.6 | 6 | 2.6 | 1 | 15 | 3.35 | 1.07 | 1.33 |
| M4 | 0.7 | 7 | 3.10 | 1.1 | 20 | 3.95 | 1.27 | 1.66 |
| M5 | 0.8 | 8.5 | 3.65 | 1.3 | 25 | 4.5 | 1.52 | 1.91 |
| M6 | 1 | 10 | 4.4 | 1.6 | 30 | 5.6 | 1.9 | 2.29 |
| M8 | 1.25 | 13 | 5.8 | 2 | 45 | 7.95 | 2.66 | 3.05 |
| M10 | 1.5 | 16 | 6.9 | 2.4 | 50 | 8.95 | 3.04 | 3.43 |
ISO 14580 Socket Cap Sixlobe (Low Head)
Product Overview：ISO14580
Product Sizes：M2 to M10 Product Lengths: 3 to 80
Product Lengths：
Product Materials：Stainless Steel (A2), Steel 8.8(Self Colour & Zinc)
