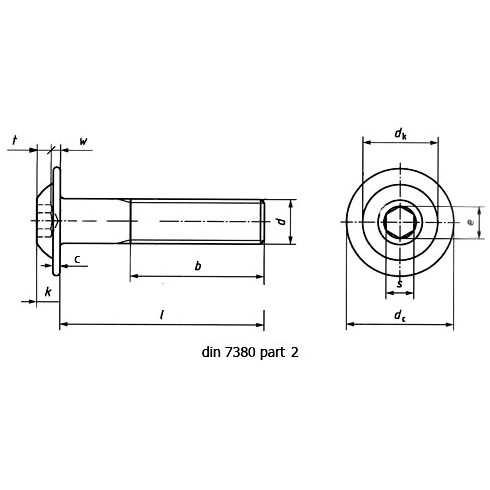

| d thread size | P | dk max | dk min | dc max | dc min | s nom | k max | k min | t min | c min | w min |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | 0.5 | 5.2 | 4.9 | 6.9 | 6.32 | 2 | 1.65 | 1.4 | 1.04 | 0.7 | 0.2 |
| M4 | 0.7 | 7.2 | 6.8 | 9.4 | 8.82 | 2.5 | 2.2 | 1.95 | 1.3 | 0.8 | 0.3 |
| M5 | 0.8 | 8.8 | 8.4 | 11.8 | 11.1 | 3 | 2.75 | 2.5 | 1.56 | 1 | 0.38 |
| M6 | 1 | 10 | 9.6 | 13.6 | 12.9 | 4 | 3.3 | 3 | 2.08 | 1.2 | 0.74 |
| M8 | 1.25 | 13.2 | 12.8 | 17.8 | 17.1 | 5 | 4.4 | 4.1 | 2.6 | 1.5 | 1.05 |
| M10 | 1.5 | 16.5 | 16.1 | 21.9 | 21.06 | 6 | 5.5 | 5.2 | 3.1 | 2 | 1.45 |
| M12 | 1.75 | 19.4 | 18.9 | 26 | 25.16 | 8 | 6.6 | 6.24 | 4.16 | 2.4 | 1.63 |
| M16 | 2 | 26 | 25.5 | 34 | 33 | 10 | 8.8 | 8.44 | 5.2 | 2.8 | 2.25 |
DIN EN ISO 7380-2 Socket Button Sixlobe Flange
Product Overview：ISO7380-2
Product Sizes：M3 to M16
Product Lengths：3 to 50
Product Materials：Stainless Steel (A2 & A4) & Steel 10.9 (Self Colour & Zinc)
