| dd thread size | P | dkdk nom=max | kk nom=max | t min | n nom |
|---|---|---|---|---|---|
| M1.6 | 0.35 | 3.2 | 1 | 0.35 | 0.4 |
| M2 | 0.4 | 4 | 1.3 | 0.5 | 0.5 |
| M2.5 | 0.45 | 5 | 1.5 | 0.6 | 0.6 |
| M3 | 0.5 | 5.6 | 1.8 | 0.7 | 0.8 |
| M3.5 | 0.6 | 7 | 2.10 | 0.8 | 1 |
| M4 | 0.7 | 8 | 2.4 | 1 | 1.2 |
| M5 | 0.8 | 9.5 | 3 | 1.2 | 1.2 |
| M6 | 1 | 12 | 3.6 | 1.4 | 1.6c |
| M8 | 1.25 | 16 | 4.8 | 1.9 | 2 |
| M10 | 1.5 | 20 | 6 | 2.4 | 2.5 |

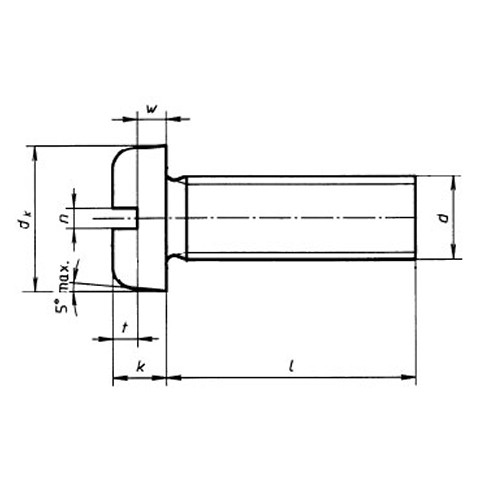

DIN85/ISO1580 Pan Slot screw
Product Overview：DIN 85 / ISO 1580
Product Sizes：M1.6 to M10
Product Lengths：2 to 80
Product Materials：Stainless Steel (A2 & A4), Steel 4.8 Zinc & Brass (Self Finish & Nickel)
