| Website Product Description | M1.4 × L Socket Head Cap Screw A2 Stainless Steel 912 Natural Finish | M1.6 × L Socket Head Cap Screw A2 Stainless Steel 912 Natural Finish | M2.0 × L Socket Head Cap Screw A2 Stainless Steel 912 Natural Finish | M2.5 × L Socket Head Cap Screw A2 Stainless Steel 912 Natural Finish |
|---|---|---|---|---|
| SKU | MF-SH-M1.4XL-A2-912-NAT | MF-SH-M1.6XL-A2-912-NAT | MF-SH-M2.0XL-A2-912-NAT | MF-SH-M2.5XL-A2-912-NAT |
| Product Family | HEX Socket Screw | HEX Socket Screw | HEX Socket Screw | HEX Socket Screw |
| Thread Diameter | M1.4 | M1.6 | M2.0 | M2.5 |
| Thread Pitch | 0.3 | 0.35 | 0.4 | 0.45 |
| Length | L | L | L | L |
| Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Material Grade | A2 | A2 | A2 | A2 |
| Property Class | A2-70 | A2-70 | A2-70 | A2-70 |
| Standard | ISO 4762 | ISO 4762 | ISO 4762 | ISO 4762 |
| Equivalent Standard | DIN 912 | DIN 912 | DIN 912 | DIN 912 |
| Drive | Hex | Hex | Hex | Hex |
| Drive Size | 1.3 | 1.5 | 1.5 | 2 |
| Head Diameter | 2.6 | 3 | 3.8 | 4.5 |
| Head Height | 1.4 | 1.6 | 2 | 2.5 |
| Thread Length | Full | Full | Full | Full |
| Finish | Natural | Natural | Natural | Natural |
| Thread Tolerance | 6g | 6g | 6g | 6g |
| RoHS | Yes | Yes | Yes | Yes |
| REACH | Yes | Yes | Yes | Yes |
| CAD | Yes | Yes | Yes | Yes |

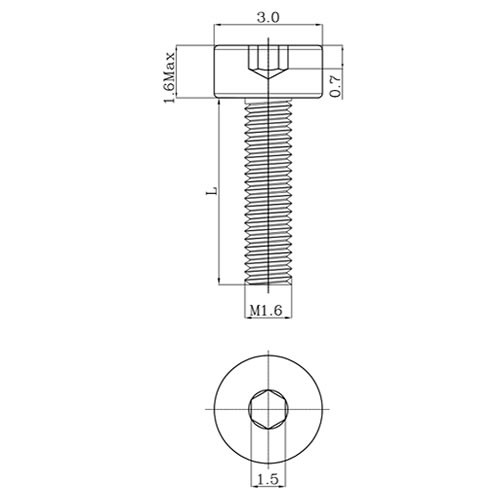

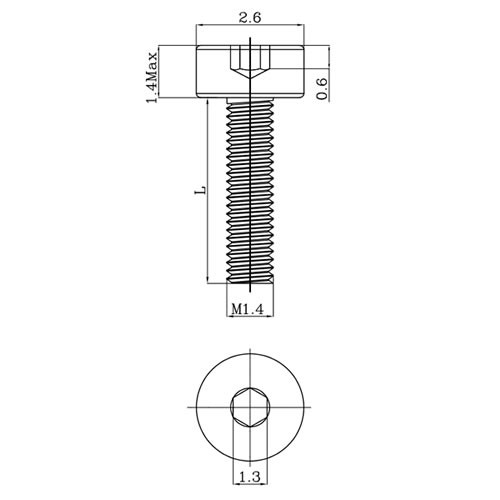

| Drawing |
DIN 912
Product Overview：DIN912/ISO4762
Product Sizes：M1.4 to M2.5
Product Lengths：L
Product Materials：Stainless Steel A2
Thread Diameter：M1.4,M1.6,M2.0,M2.5
Thread Pitch：0.3,0.35,0.4,0.45
Product Drawing：⬇️ DIN 912 Drawing.zip
